FME-CSA-900

SPECIAL PELLET DIE COUNTERSINK MACHINE

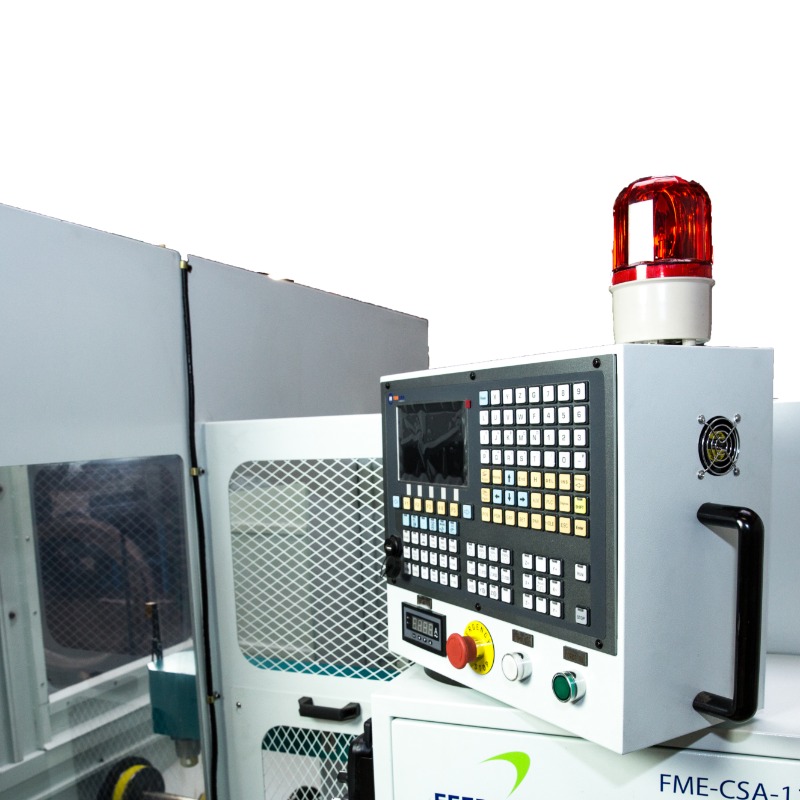

Automatic CNC pellet die countersink machine

Specifications:

LxWxH 1950x1100x1600 mm
Weight ±1200 kg
Spindle Power 2.2 kW
Voltage 3 x 380V-460V (indicated by customer)
Frequency 50 Hz or 60 Hz (indicated by customer)
Horizontal Stroke 380 mm
Z Axis Stroke 270 mm
Position Accuracy 0.02 mm
Spindle Speed ø1.2-ø6 mm / 0-3000 rpm
  ø6-ø12 mm / 0-1500 rpm
Artikel No.Max. Outer DiameterMin. Inner DiameterMax. Width
FME-CSA-900 ø900 mm ø350 mm 370 mm

FEATURES:

  • Fast machining speed, fully automatic processing
  • Simple operation, no professional training required
  • One person can operate several machines
  • Ring die size self adapt to process, no need measuring
  • All the exposed lead screws and guide rails are protected with cover. To extend machine service life
  • CE-certificate of origine

REQUEST A QUOTE

We customize. We deliver. As promised.
