Machines

FME-CSA-1100

SPECIAL PELLET DIE COUNTERSINK MACHINE

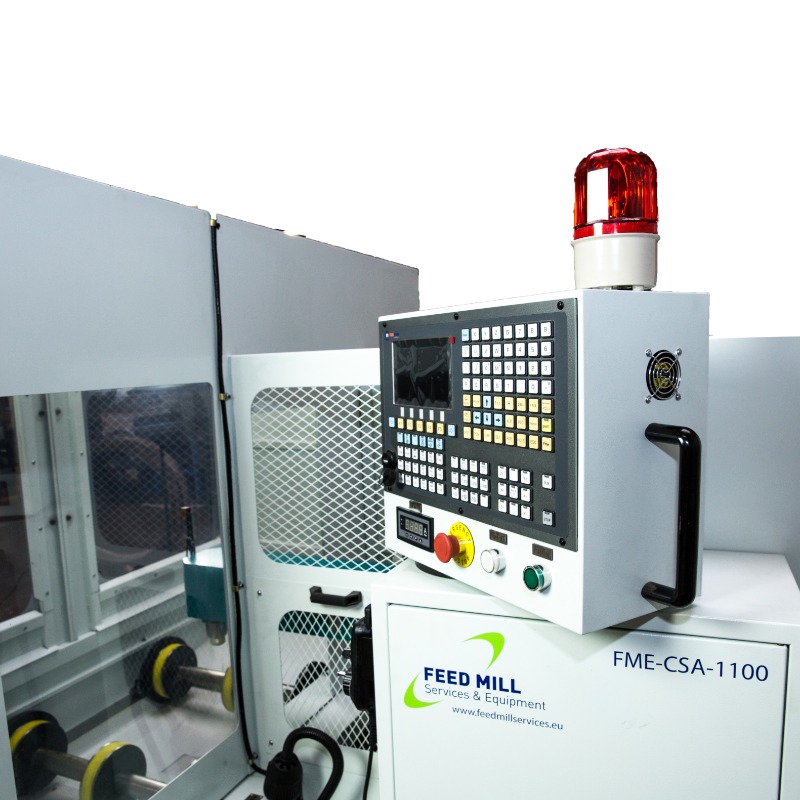

Automatic CNC pellet die countersink machine

Specifications:

LxWxH 2300x1700x1900 mm
Weight ±1500 kg
Spindle Power 2.2 kW
Voltage 3 x 380V-460V (indicated by customer)
Frequency 50 Hz or 60 Hz (indicated by customer)
Spindle Speed ø1.2-ø6 mm / 0-3000 rpm
  ø6-ø12 mm / 0-1500 rpm
Artikel No.Max. Outer DiameterMin. Inner DiameterMax. Width
FME-CSA-1100 ø1500 mm ø350 mm 500 mm

FEATURES:

  • Fast machining speed, fully automatic processing
  • Simple operation, no professional training required
  • One person can operate several machines

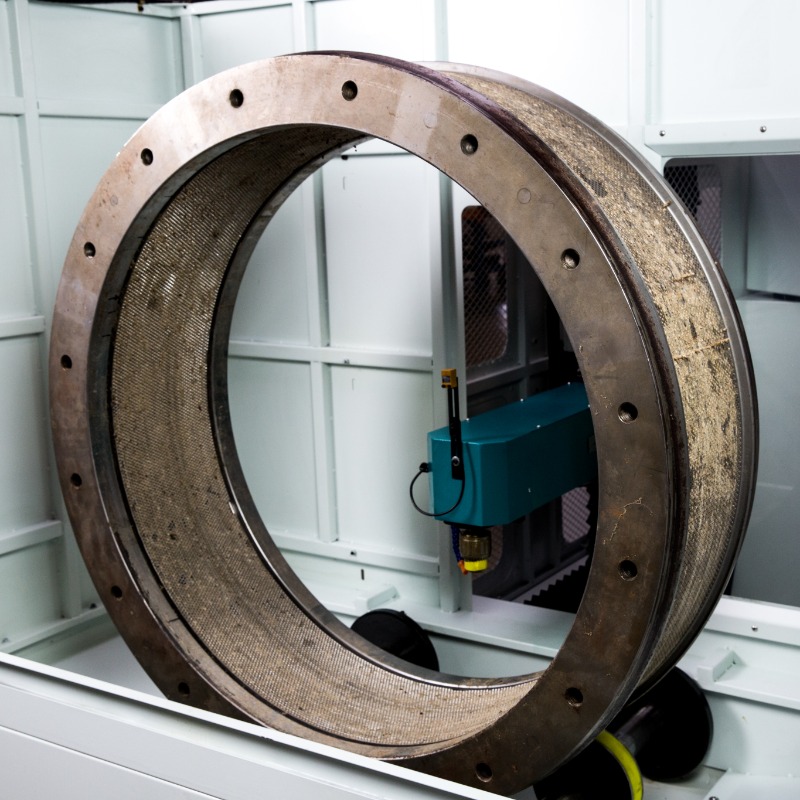

  • Ring die size self adapt to process, no need measuring
  • All the exposed lead screws and guide rails are protected with cover. To extend machine service life
  • CE-certificate of origine
